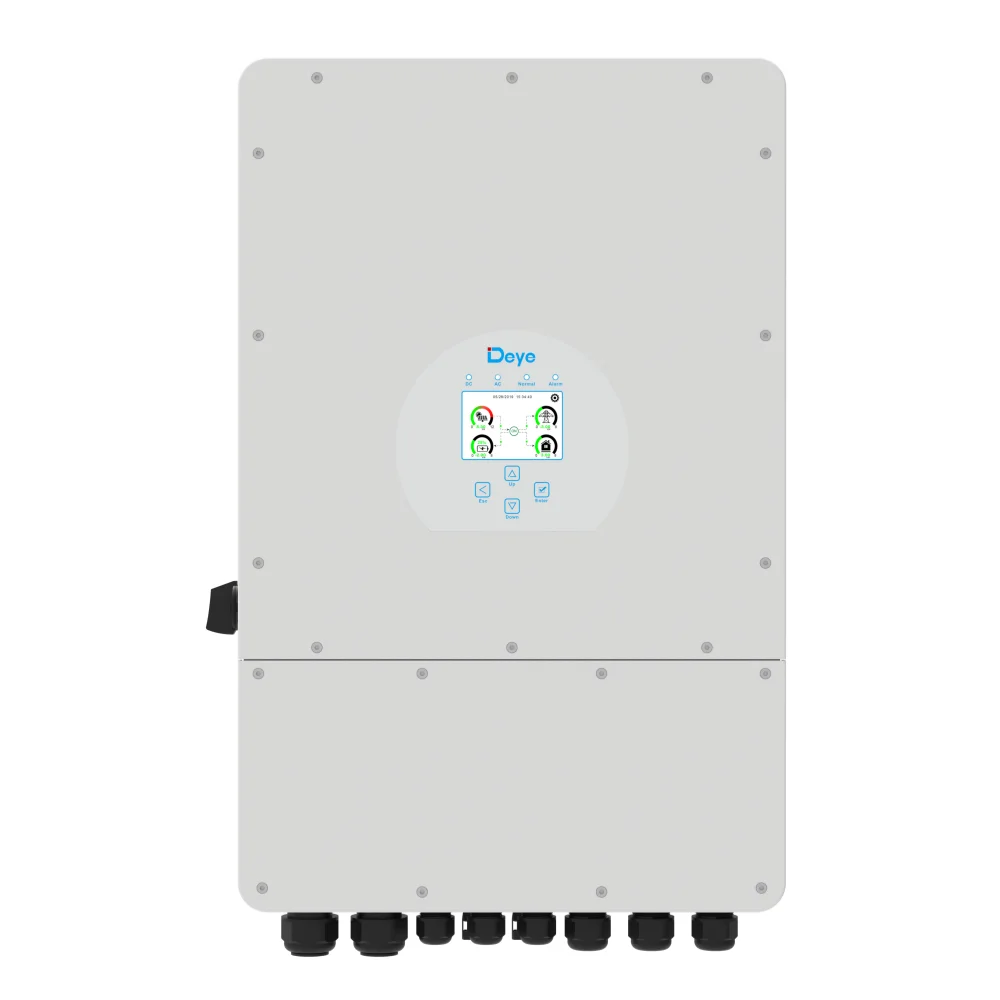

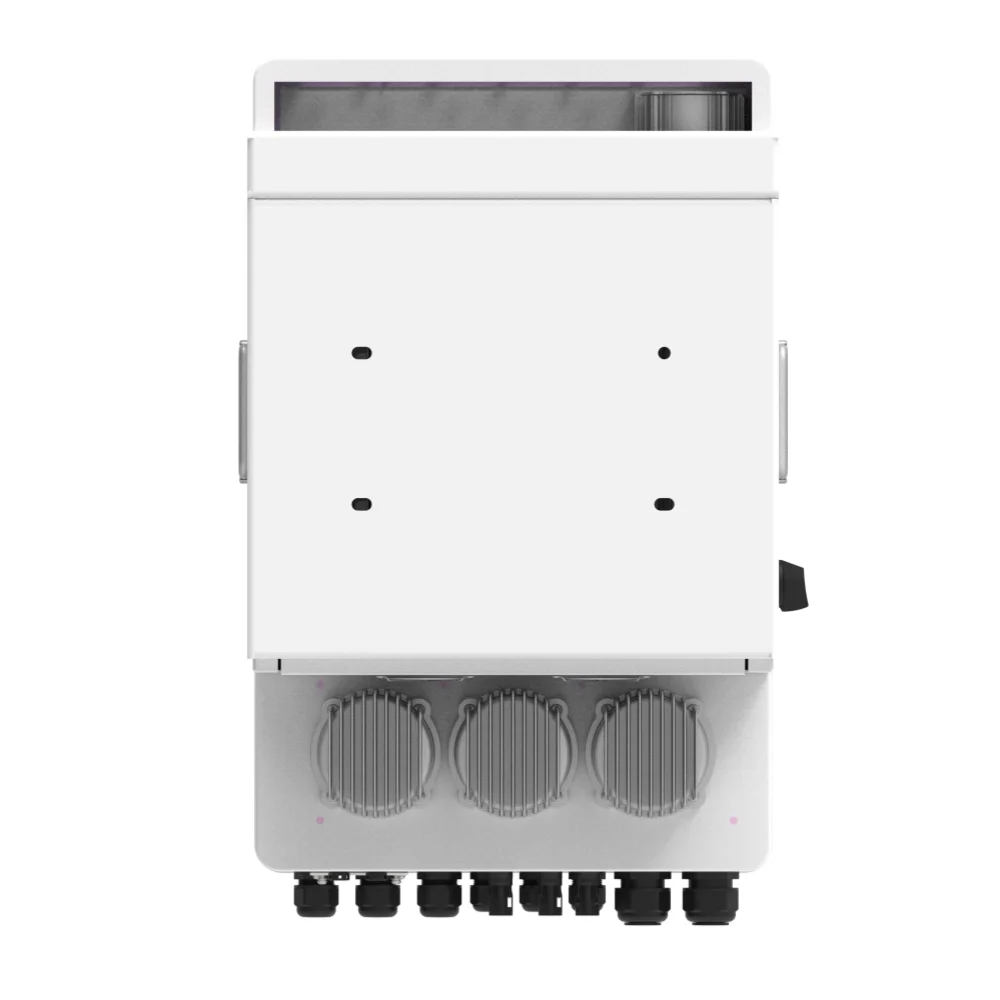

Deye Low Voltage Three Phase Energy Storage Hybrid Inverters: 5kW to 12kW Options

Product Description

deye low voltage three phase energy storage hybrid inverters 5kw to 12kw options-0

Why choose us

deye low voltage three phase energy storage hybrid inverters 5kw to 12kw options-1

Hybrid Solar Inverter

Model	SUN-5K-SG04LP3-EU	SUN-6K-SG04LP3-EU	SUN-8K-SG04LP3-EU	SUN-10K-SG04LP3-EU	SUN-12K-SG04LP3-EU
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range(V)	40-60
Max.Charging Current(A)	120	150	190	210	240
Max.Discharging Current(A)	120	150	190	210	240
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of battery input	1
Max. PV Access Power (W)	10000	12000	16000	20000	24000
Max PV Input Power（W）	7500	9000	12000	15000	18000
MaxPV Input Voltage（V）	800
Start-up Voltage（V）	160
MPPT Voltage Range（V）	200-650
Rated PV Input Voltage(V)	550
Max. Operating PV Input Current (A)	13+13					26+13
Max. Input Short-Circuit Current (A)	17+17					34+17
No.of MPP Trackers/No.of String Per MPP Tracker	2/1+1					2/2+1
Rated AC Input/Output Active Power（W）	5000	6000	8000	10000	12000
Max AC Input/Output Apparent Power （VA）	5500	6600	8800	11000	13200
Peak Power (off-grid)（W）	2 times of rated power, 10s
Rated AC Input/Output Current（A）	7.6/7.2	9.1/8.7	12.1/11.6	15.2/14.5	18.2/17.4
Max AC Input/Output Current（A）	8.4/8	10/9.6	13.4/12.8	16.7/15.9	20/19.1
Max Continuous AC Passthrough (grid to load)（A）	45
Rated Input/Output Voltage/Range(V)	220/380V，230/400V 0.85Un-1.1Un
Grid Connection Form	3L+N+PE
Rated Input/Output Grid Frequency/Range	50/45-55, 60/55-65
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5%ln
Max Efficiency	97.6%
Euro Efficiency	97.0%
MPPT Efficiency	＞99%

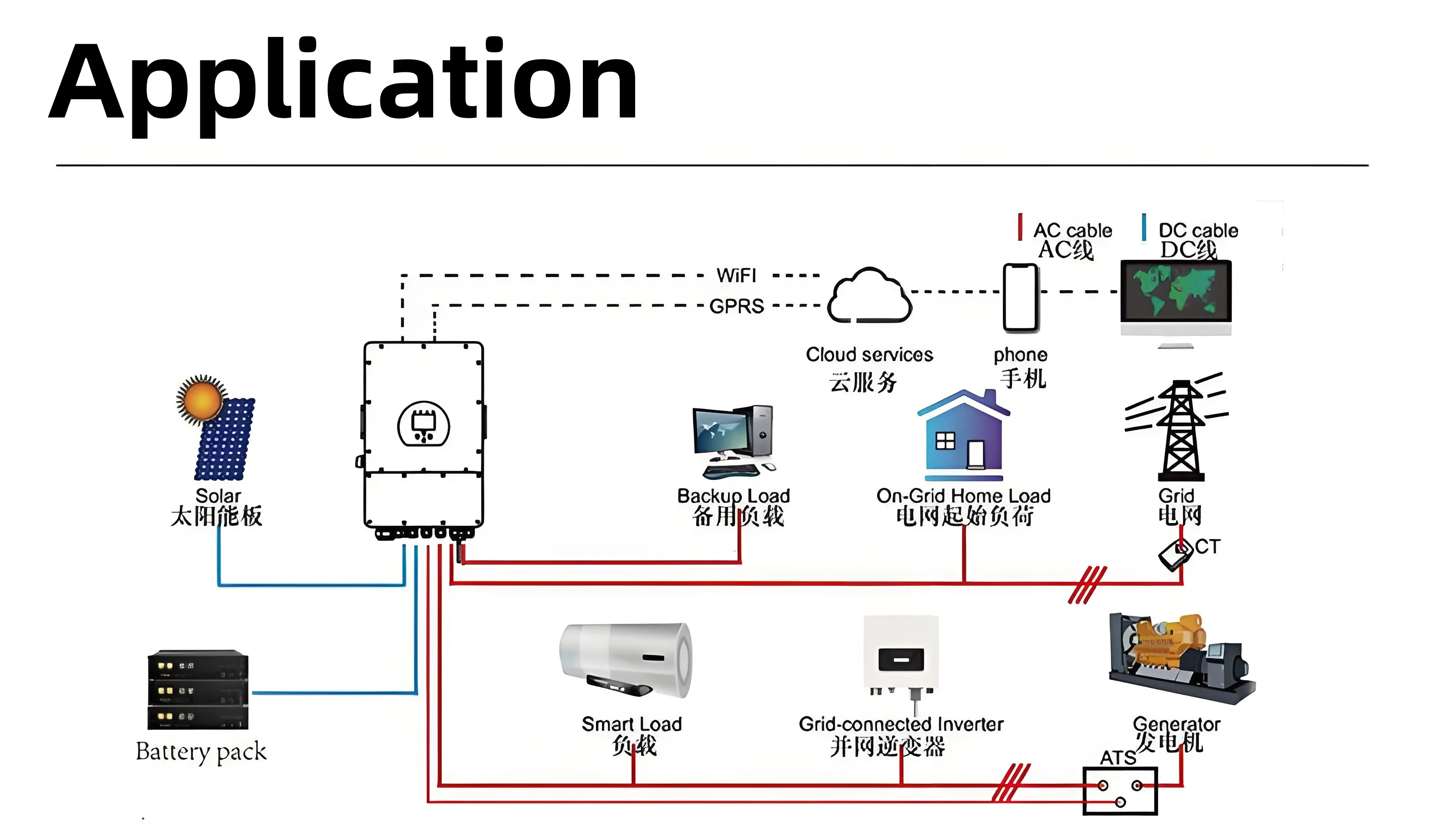

How It Works

deye low voltage three phase energy storage hybrid inverters 5kw to 12kw options-2

Production Line

deye low voltage three phase energy storage hybrid inverters 5kw to 12kw options-3

Aging-Test-1

deye low voltage three phase energy storage hybrid inverters 5kw to 12kw options-4

Aging-Test-Room-2

deye low voltage three phase energy storage hybrid inverters 5kw to 12kw options-5

Assemble-line-1

deye low voltage three phase energy storage hybrid inverters 5kw to 12kw options-6

ATE-Test

deye low voltage three phase energy storage hybrid inverters 5kw to 12kw options-7

Coating-machine-1

deye low voltage three phase energy storage hybrid inverters 5kw to 12kw options-8

Coating-machine-2

deye low voltage three phase energy storage hybrid inverters 5kw to 12kw options-9

Production-workshop

deye low voltage three phase energy storage hybrid inverters 5kw to 12kw options-10

SMT-1

deye low voltage three phase energy storage hybrid inverters 5kw to 12kw options-11

SMT-2

Project Cases

deye low voltage three phase energy storage hybrid inverters 5kw to 12kw options-12

Packing&Delivery

deye low voltage three phase energy storage hybrid inverters 5kw to 12kw options-13

Product description

The Deye Low Voltage Three Phase Energy Storage Hybrid Inverters, available in 5kW to 12kW options, are designed to optimize energy usage and reduce electricity costs. These inverters integrate solar power generation with battery storage, enabling seamless transition between grid power and stored energy. They support advanced energy management features, ensuring efficient self-consumption and backup power during outages. With robust performance and low voltage compatibility, they are ideal for residential and commercial applications seeking sustainable and reliable energy solutions.

deye low voltage three phase energy storage hybrid inverters 5kw to 12kw options-14

FAQ

1.How do I choose the right solar system?

We provide a 24-hour online guidance service to customize a solar system for you
according to your electricity needs.

2.What is the protection of photovoltaic strength generation, and how to deal with lightning strikes, hail, leakage, and different problems?

First of all, DC combiner boxes, inverters, and different gear strains have overload safety functions. When atypical voltages such as lightning strikes and leakage occur, they will routinely become off and disconnected, so there is no protection problem. Secondly, the floor of photovoltaic modules is made of superb impact-resistant tempered glass, which has passed through rigorous trying out and checking out when passing the EU certification and can stand up to wind stress of 200Pa and snow stress of 7200Pa.

3.How can we guarantee quality?

A: Always a pre-production sample before mass production; Always final Inspection before shipment.

4.Why should you buy from us, not from other suppliers?

FadSol is a technology trade Internet company specializing in the solar field, More than 10 years of history, exports to over 60 countries annually, 7days 24 hours service.

5.What are your main products?

A: Solar system, solar panel, inverter, controller, Solar Light, Solar Air Conditioner, etc.

6.Could you print our company logo on the nameplate and package?

A: Yes, we can do it according to your design.

7.What if I don't have export experience?

A: We have a reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Anyway, we will

help you choose the most suitable shipping service.

8.How to become your agent?

A: Contact us through Alibaba, and we will give you the best price and look forward to your greetings.
