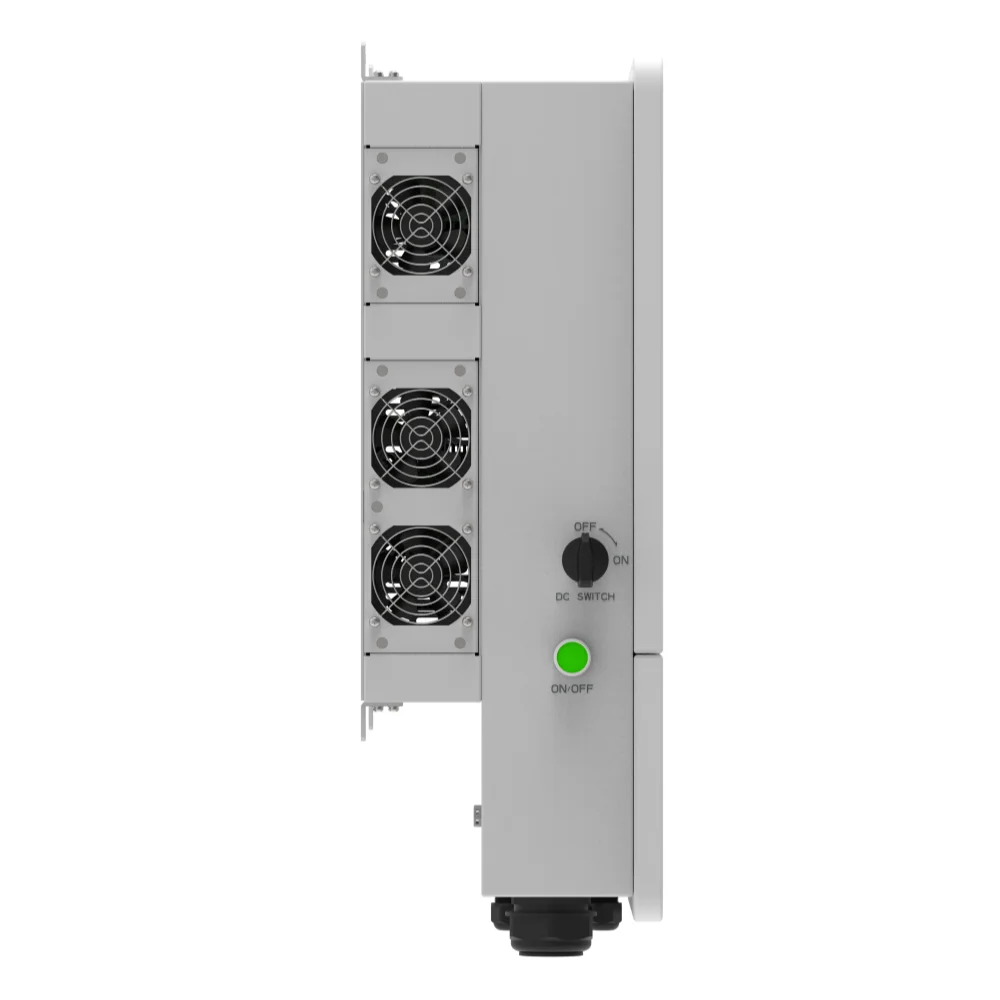

Deye 10kW Single-Phase Hybrid Solar Inverter with Pure Sine Wave Technology for PV Systems
Deye 10kW Single-Phase Hybrid Solar Inverter with Pure Sine Wave Technology for PV Systems
Deye 10kW Single-Phase Hybrid Solar Inverter with Pure Sine Wave Technology for PV Systems
Deye 10kW Single-Phase Hybrid Solar Inverter with Pure Sine Wave Technology for PV Systems
Deye 10kW Single-Phase Hybrid Solar Inverter with Pure Sine Wave Technology for PV Systems
Deye 10kW Single-Phase Hybrid Solar Inverter with Pure Sine Wave Technology for PV Systems
Deye 10kW Single-Phase Hybrid Solar Inverter with Pure Sine Wave Technology for PV Systems
Deye 10kW Single-Phase Hybrid Solar Inverter with Pure Sine Wave Technology for PV Systems
Deye 10kW Single-Phase Hybrid Solar Inverter with Pure Sine Wave Technology for PV Systems
Deye 10kW Single-Phase Hybrid Solar Inverter with Pure Sine Wave Technology for PV Systems
Deye 10kW Single-Phase Hybrid Solar Inverter with Pure Sine Wave Technology for PV Systems
Deye 10kW Single-Phase Hybrid Solar Inverter with Pure Sine Wave Technology for PV Systems

Deye 10kW Single-Phase Hybrid Solar Inverter with Pure Sine Wave Technology for PV Systems

GET a Quote
Product Description
Product Description
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-0
Why choose us
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-1
Hybrid Inverter
Model
SUN-10K-SG02LP1-EU-AM3
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range(V)
40-60
Max.Charging Current(A)
220
Max.Discharging Current(A)
220
Charging Strategy for Li-ion Battery
Self-adaption to BMS
Number of battery input
1
Max. PV Access Power (W)
20000
Max DC Input Power（W）
16000
Max DC Input Voltage（V）
500
Start-up Voltage（V）
125
MPPT Voltage Range（V）
150-425
Rated DC Input Voltage(V)
370
Max. Operating PV Input Current (A)
26+26+26
Max. Input Short-Circuit Current (A)
44+44+44
No.of MPP Trackers/No.of String Per MPP Tracker
3/2+2+2
Rated AC Input/Output Active Power（W）
10000
Max AC Input/Output Apparent Power （VA）
11000
Peak Power (off-grid)（W）
2 times of rated power,10s
Rated AC Input/Output Current（A）
45.5/43.5
Max AC Input/Output Current（A）
45.5/43.5
Max Continuous AC Passthrough (grid to load)（A）
60
Power Factor Adjustment Range
0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)
220/230 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz)
50/45-55, 60/55-65
Grid Connection Form
L+N+PE
Total Current Harmonic Distortion THDi
<3% (of nominal power)
DC Injection Current
<0.5%ln
Max Efficiency
97.6%
Euro Efficiency
96.5%
MPPT Efficiency
＞99%

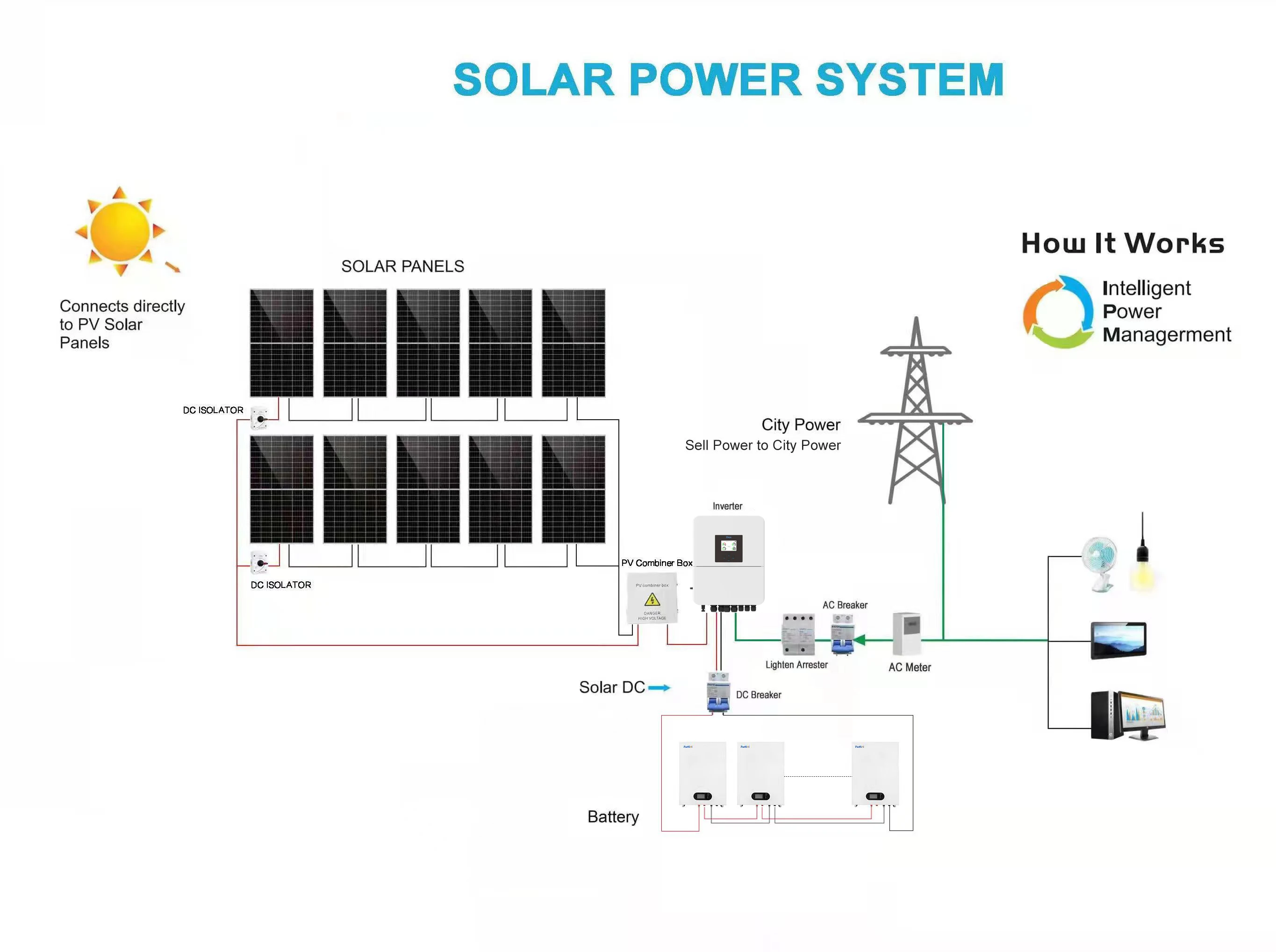

How It Works
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-2

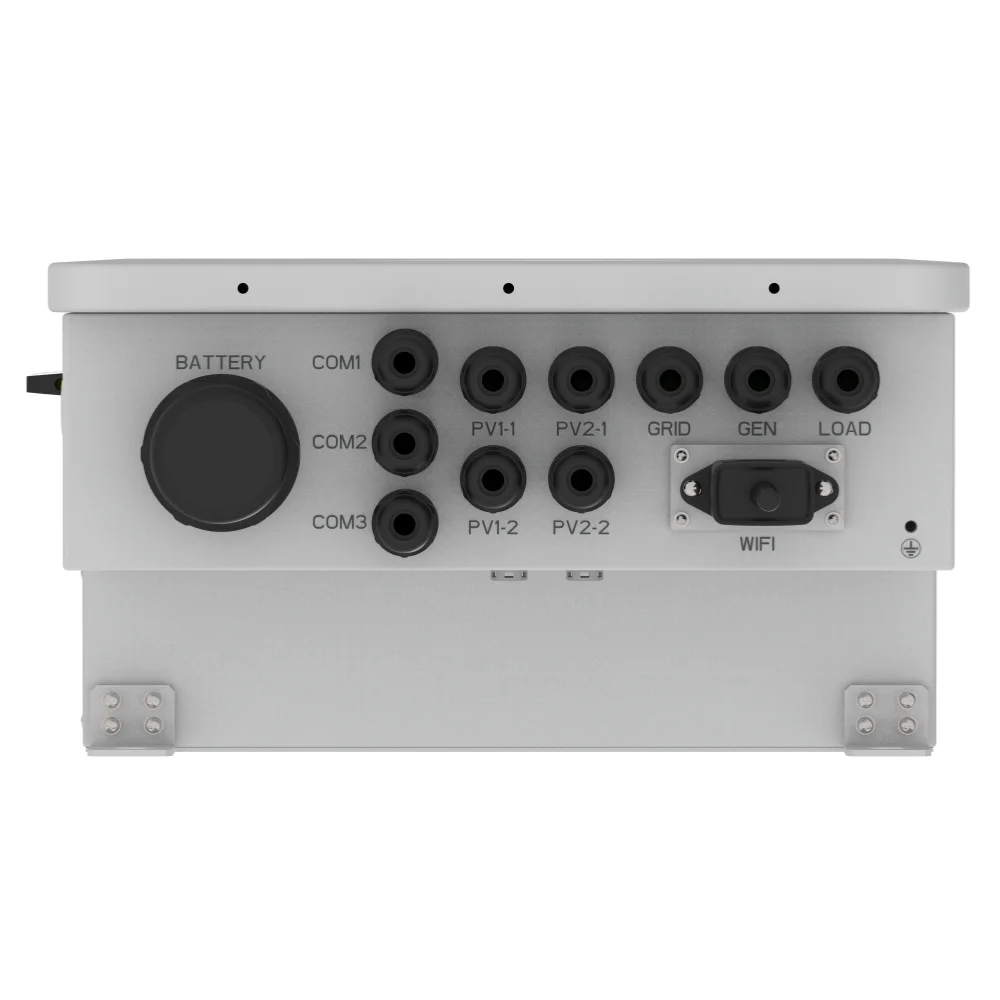

Details
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-3
Half Cut Mono 550W Solar Panel
1. Power: 550W
2. Size: 2279*1134*35mm
3. Weight: 29KGS/PCS
4. Module efficiency:21.3%
5. Voltage at Pmax:49.9V
6. Current at Pmax:14A
7. Open-circuit Voltage:41.96V
8. Short-Circuit Currect:13.11A
9. A grade high quality solar panel

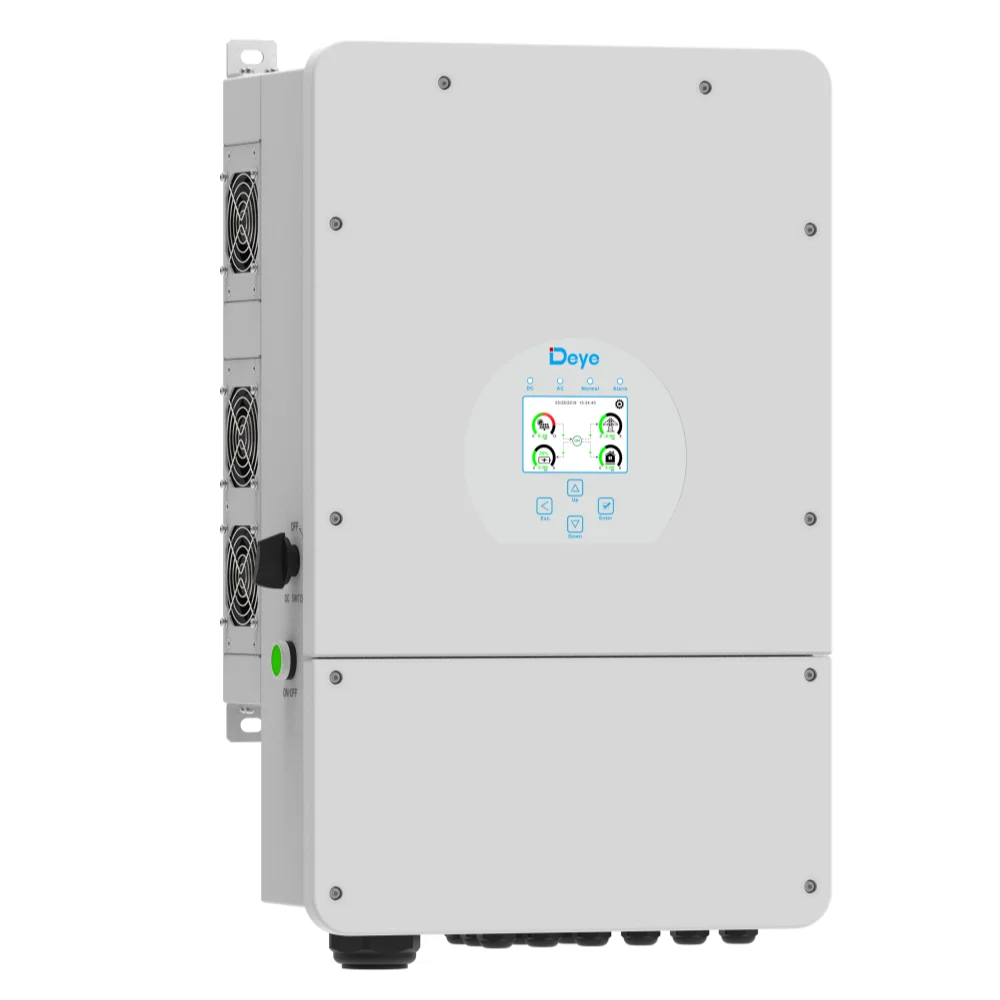

8KW Hybrid Inverter
1.Rated AC Input/Output Active Power（W）10000W
2.Peak Power (off-grid)（W):2 times of rated power,10s
3.Rated AC Input/Output Current（A）:45.5/43.5
4.Max AC Input/Output Current（A）:45.5/43.5
5.Rated Input/Output Voltage/Range(V):220/230 0.85Un-1.1Un
6.Operating Temperature Range:-40 to +60℃, >45℃ Derating
7.Monitor Mode:GPRS/WIFI/Bluetooth/4G/LAN(optional)
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-4
Tile Roof Mounting System
1.Application:Tile roof, Flat tile roof, Slate roof
2.Inclination:Parallel to the roof
3.Material:AL 6005-T5.SUS 304
4.Finish:AL 6005-T5 Anodized, SuS 304 Shot blasting
5.Module orientation:Landscape or Portrait
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-5
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-6
Solar System Accessories
1.Solar cable：4mm2 2. PV combined box: 2inlet/1outlet 3. Fues 4. DC breaker 5. Lighten arrester 6. MC tools package
Production Line
Solar Panel Production Line
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-7
Production Line
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-8
Aging-Test-1
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-9
Aging-Test-Room-2
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-10

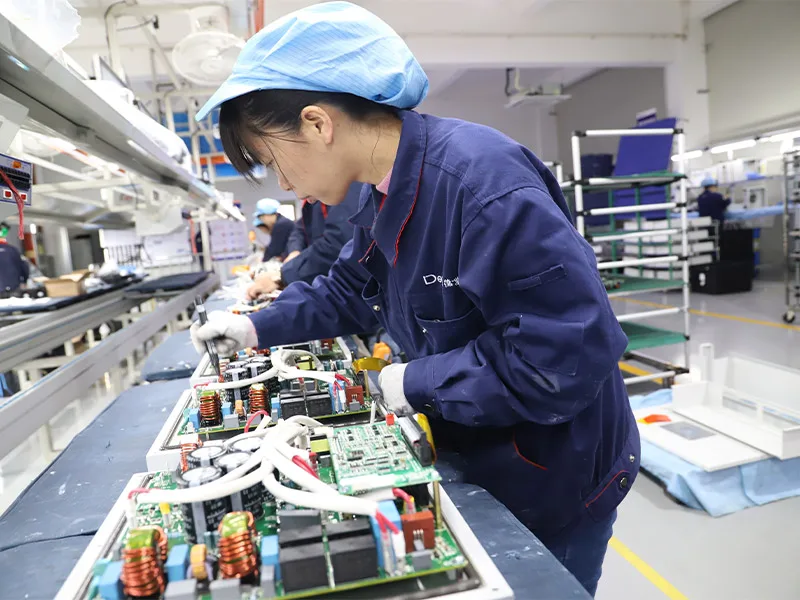

Assemble-line-1
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-11

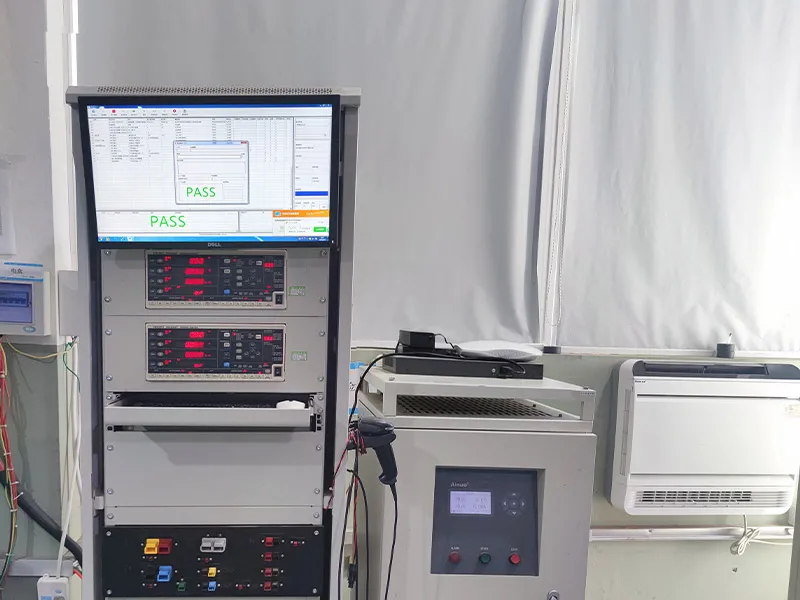

ATE-Test
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-12

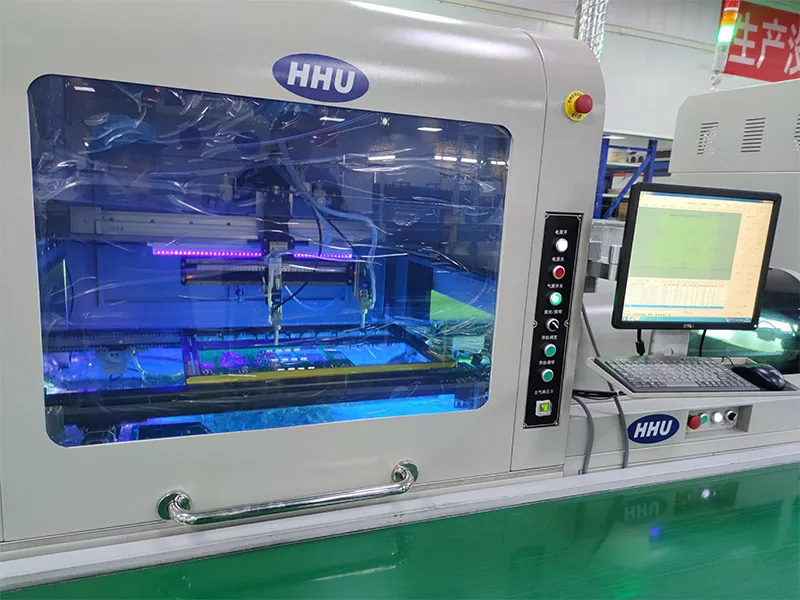

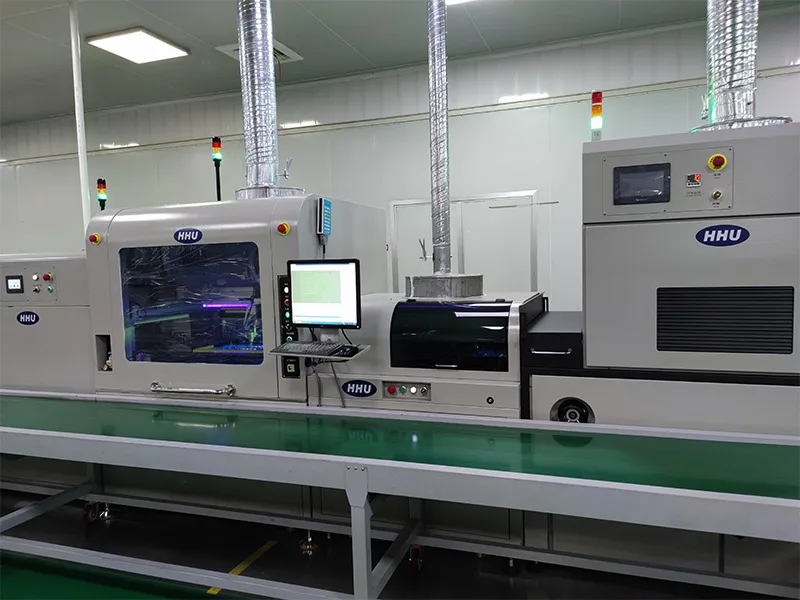

Coating-machine-1
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-13
Coating-machine-2
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-14
Production-workshop
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-15

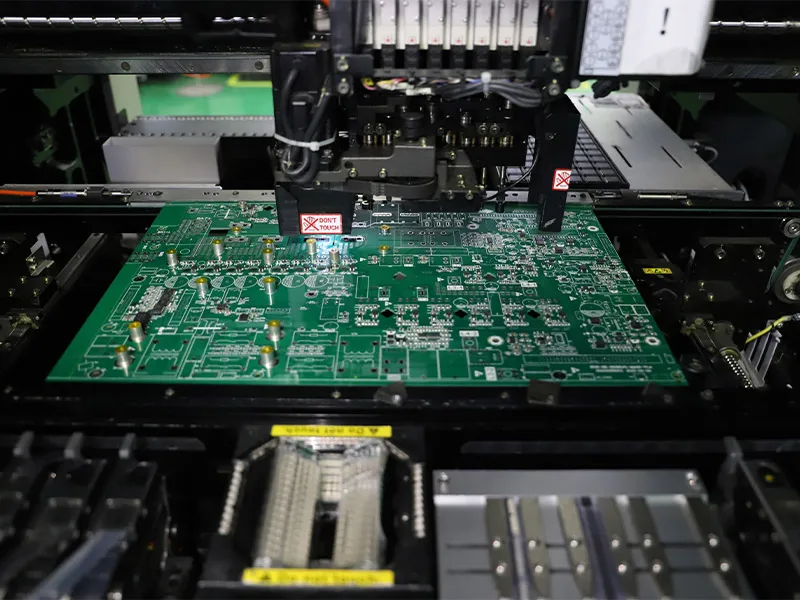

SMT-1
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-16
SMT-2

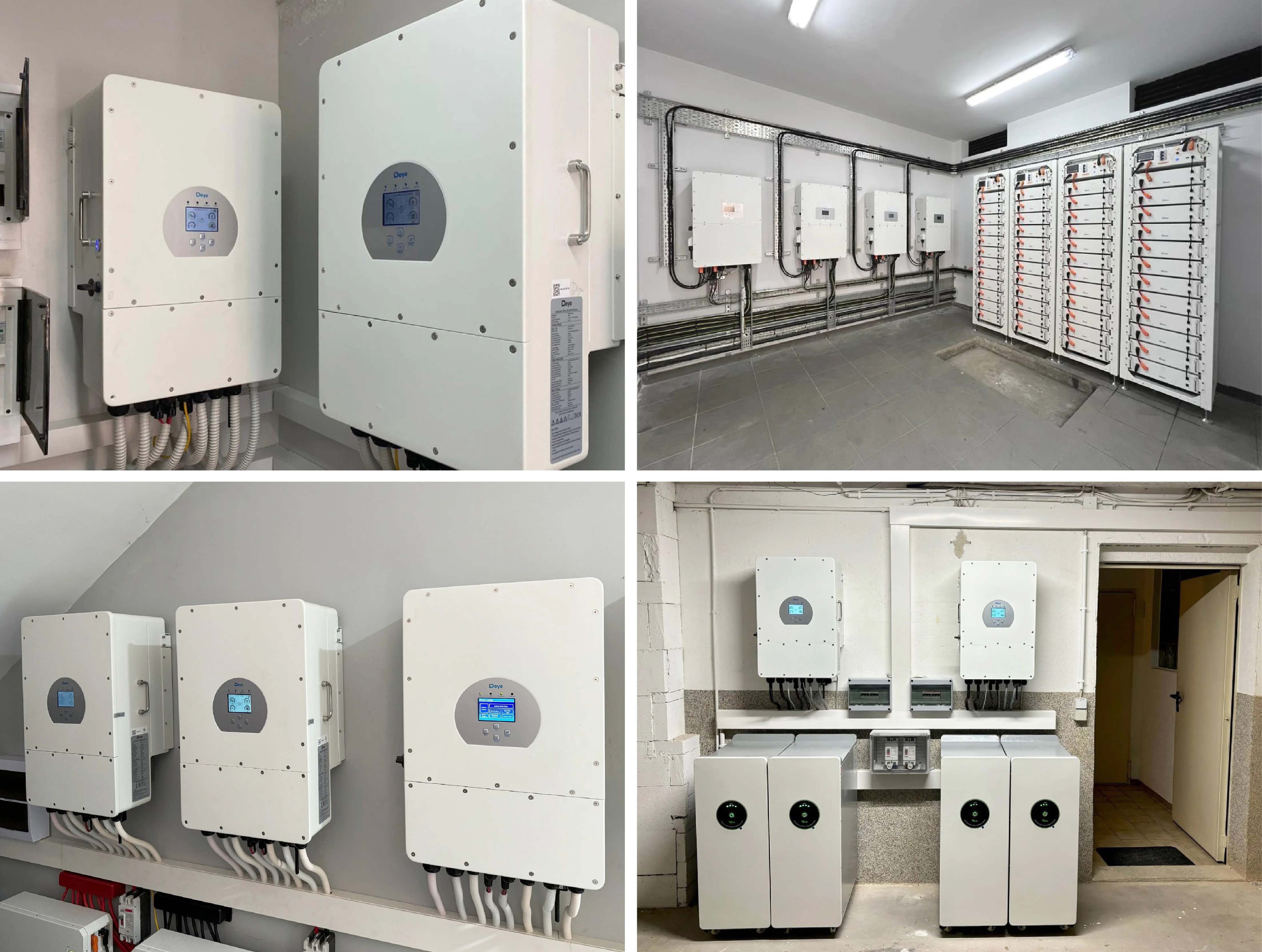

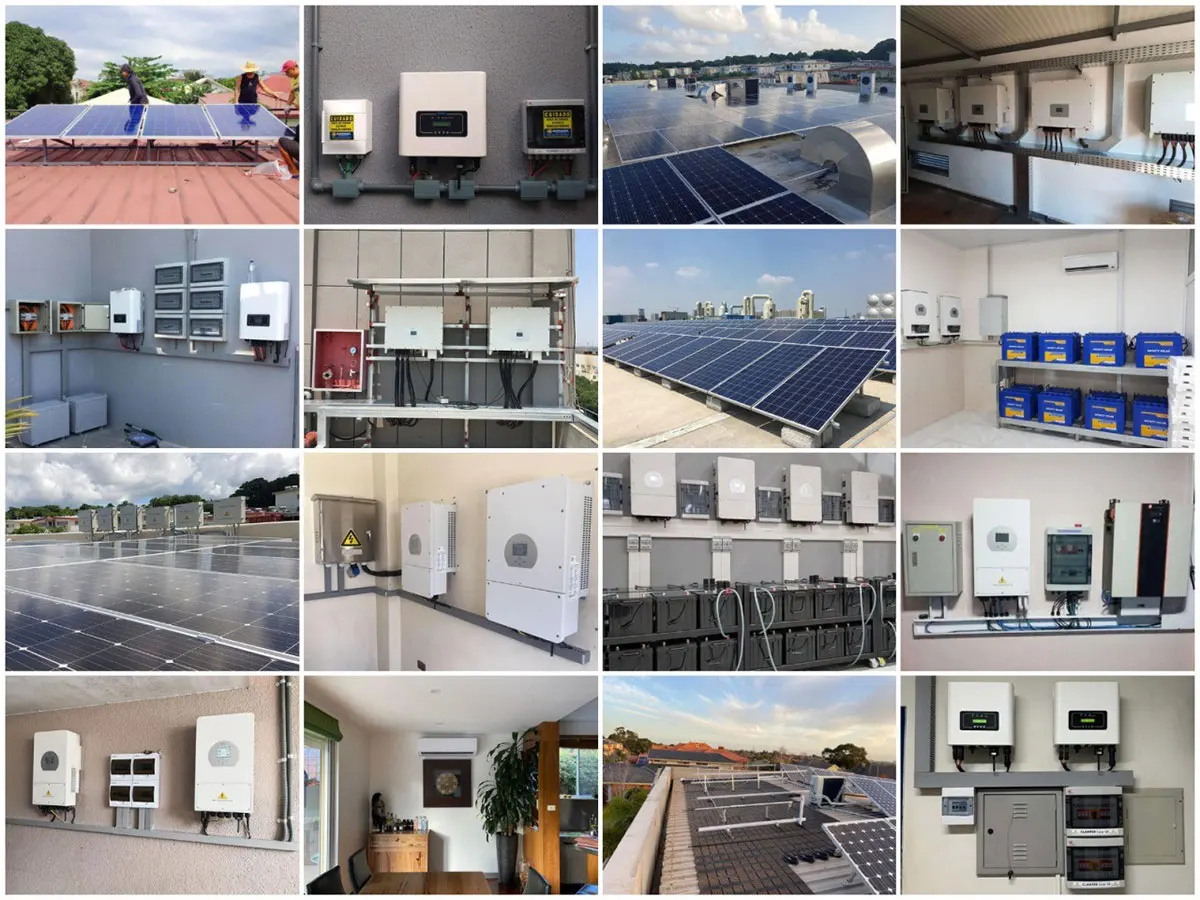

Project Cases
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-17
Packing&Delivery
deye 10kw single phase hybrid solar inverter with pure sine wave technology for pv systems-18
Product description
The Deye 10kW Single-Phase Hybrid Solar Inverter is a cutting-edge solution designed for PV systems, offering seamless integration of solar energy into residential and light commercial applications. Equipped with Pure Sine Wave Technology, it ensures stable and high-quality power output, safeguarding sensitive electronics from potential damage. This hybrid inverter not only maximizes solar energy utilization but also supports grid-tied and off-grid functionalities, providing users with uninterrupted power supply. Its intelligent energy management system optimizes self-consumption and battery storage, reducing reliance on the grid and lowering electricity bills. With robust performance and advanced features, the Deye 10kW Hybrid Solar Inverter is a reliable choice for sustainable energy solutions.
FAQ
1.How do I choose the right solar system?
We provide a 24-hour online guidance service to customize a solar system for you
according to your electricity needs.
2.What is the protection of photovoltaic strength generation, and how to deal with lightning strikes, hail, leakage, and different problems?
First of all, DC combiner boxes, inverters, and different gear strains have overload safety functions. When atypical voltages such as lightning strikes and leakage occur, they will routinely become off and disconnected, so there is no protection problem. Secondly, the floor of photovoltaic modules is made of superb impact-resistant tempered glass, which has passed through rigorous trying out and checking out when passing the EU certification and can stand up to wind stress of 200Pa and snow stress of 7200Pa.
3.How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
4.Why should you buy from us, not from other suppliers?
FadSol is a technology trade Internet company specializing in the solar field, More than 10 years of history, exports to over 60 countries annually, 7days 24 hours service.
5.What are your main products?
A: Solar system, solar panel, inverter, controller, Solar Light, Solar Air Conditioner, etc.
6.Could you print our company logo on the nameplate and package?
A: Yes, we can do it according to your design.
7.What if I don't have export experience?
A: We have a reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Anyway, we will
help you choose the most suitable shipping service.
8.How to become your agent?
A: Contact us through Alibaba, and we will give you the best price and look forward to your greetings.
